Micro-Precision Computerized Laser Etching & Ablation
At ADIRAJ COATING PVT. LTD., we provide high-precision industrial laser etching and selective laser ablation engineered for automotive controls, cockpit switchgear, and permanent component traceability. Situated in Chakan, Pune, we work in close synergy with Tier-1 automotive electronics and lighting suppliers.
One of our signature capabilities is selective day/night switch ablation. Modern automotive interior switches (window lifts, hazard buttons, climate toggles) are molded from translucent or white polycarbonate/ABS. The part is first coated with a high-opacity black or charcoal topcoat. Using computer-guided galvanometer laser scanners, our laser beam vaporizes the top opaque paint layer with microscopic depth precision, exposing the translucent substrate beneath. During daylight, the icon appears crisp white against the dark matte surface; at night, internal LEDs illuminate the etched symbol with crystal-clear, uniform backlight radiance.
Core Technical Strengths
Selective Multi-Layer Ablation
Strips top opaque paint layers with micron-depth control without melting, scorching, or pitting the base polymer.
Automotive OEM Traceability
Etches high-contrast, permanent 2D DataMatrix, QR codes, VIN numbers, and lot codes readable by automated optical scanners.
Zero Tooling Changeover
Imports CAD vector files directly (DXF, AI, PLT). Rapid design revisions and zero expensive mechanical tooling or die costs.
Permanent & Tamper-Proof
Laser markings are physically ablated into the substrate—immune to chemical rub, solvent wash, and heavy tactile wear.
Technical Specifications & Standards
Laser Etching Technical Parameters
Tier-1 OEM Compliant| Laser Technology Sources | Q-Switched & MOPA Fiber Lasers (1064 nm wavelength) and RF CO2 Laser systems (10.6 µm) |
| Applicable Substrates | Painted Polycarbonate (PC), ABS, PC/ABS blends, Anodized Aluminum, Stainless Steel, Brass, Coated metals |
| Focused Spot Diameter | 20 to 40 µm (Microns) for micro-vector sharpness |
| Marking Resolution & Repeatability | Resolution: 0.01 mm | Positional Repeatability: ±0.005 mm |
| Max Linear Marking Speed | Up to 7,000 mm/second via high-speed Galvo mirrors |
| Minimum Character / Code Size | Micro text legible down to 0.3 mm; 2D DataMatrix codes down to 1.5 mm × 1.5 mm |
| Supported File Formats | DXF, DWG, AI, PLT, BMP, JPG, SVG, STEP / IGES vector artwork |
| Quality Inspection Parameters | Optical light transmission lux measurement, edge sharpness microscopy, barcode grading (ISO/IEC 15415 Grade A/B) |
Standard Operating Procedure
CAD Vector Programming
OEM switch symbol or DataMatrix code is imported into CAM software to configure laser power, frequency, and speed.
Precision Fixturing
Parts are held in multi-cavity CNC indexed jigs to maintain absolute repeatability across high-volume production.
Galvo Laser Ablation
Focused laser pulses vaporize target paint layers in milliseconds, creating crisp, Burr-free vector edges.
Backlight & Optical Audit
Components undergo optical backlight transmission checks and 2D barcode scanner verification before final dispatch.
Key Automotive & Industrial Applications
- Day/Night Backlit Power Window Switches
- Hazard Warning & Defogger Toggle Buttons
- Steering Wheel Audio & Cruise Control Buttons
- Headlamp Leveler & Fog Light Selector Knobs
- Automotive Chassis 2D DataMatrix Traceability Codes
- Anodized Aluminum Component Branding & Serializing
- Instrument Cluster Bezels & Backlit Warning Indicators
- Commercial Vehicle VIN & Rating Identification Plates

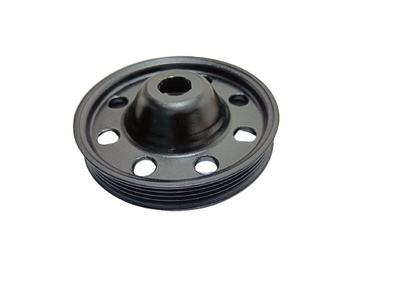

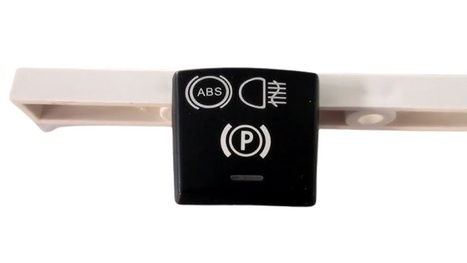

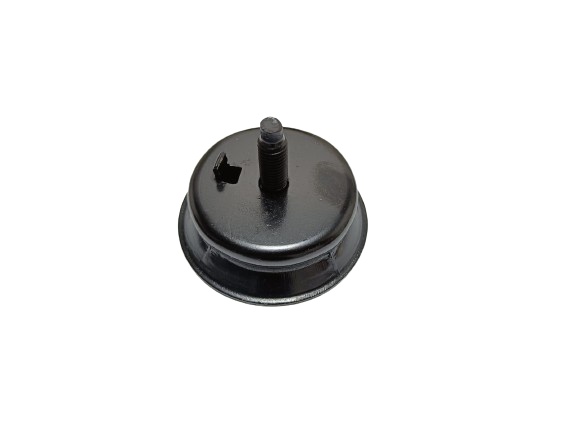

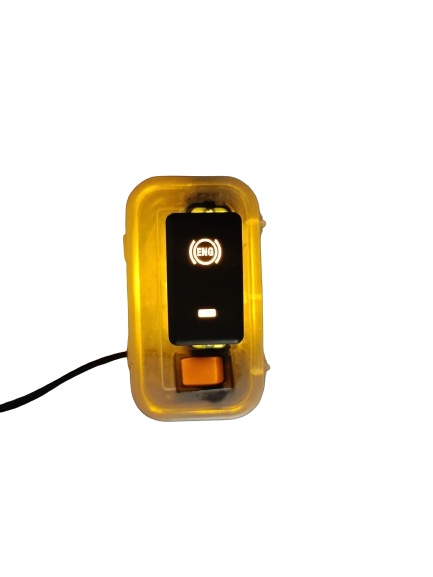

Finished Laser Etching Samples
High-definition photographs of components processed in our Chakan industrial plant:
